| 型番: | NTC | 連絡先タイプ: | 通常は閉じているか、通常開いています |
|---|---|---|---|
| スイッチタイプ: | 自動リセットまたは手動リセット | 輸送パッケージ: | 2000pcs/カートン |
| 仕様: | 12*16 | 公称抵抗: | 5k、8k、10k、15k〜100k |
| 耐性耐性: | ±1、±2、±3、±5、±10 | 材料係数: | 2500〜5000K |
| 消滅係数: | ≥0.8mw/℃ | 熱時定数: | ≤25s |
| 使用温度: | -40℃～+250℃ | 定格電力: | 50mW |

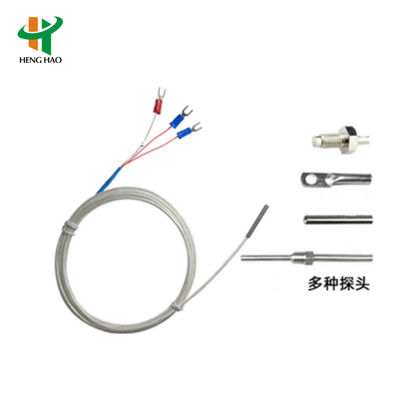

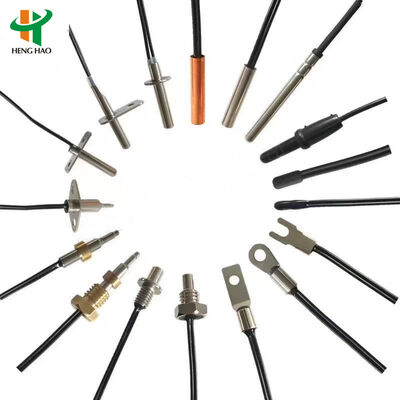

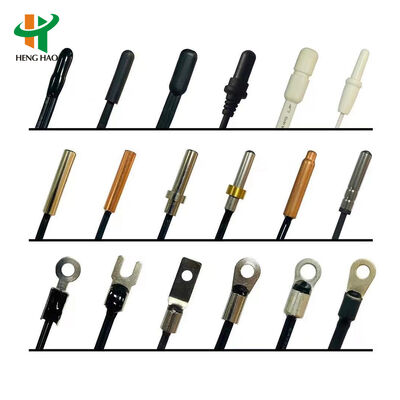

| ケースタイプ: | フォークヘッド、Oリングヘッド、水滴ヘッド、メタルケース、ネジ銅ケース、インジェクションヘッド | リードワイヤー: | #24 30# 2651、UL4411 28#、二重有線導体 |
| 端子タイプ: | 要件に応じてリベット留めすることができます | ||

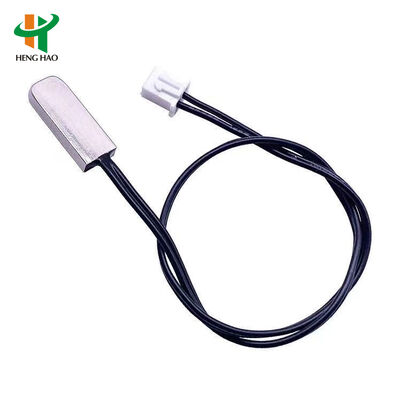

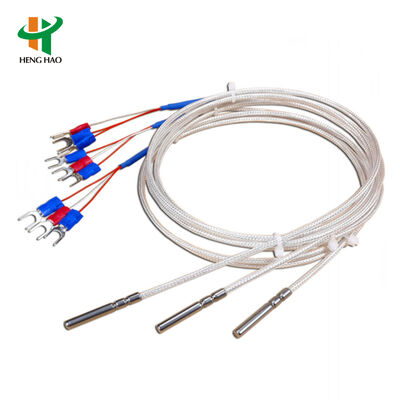

| ハイライト: | PT100 temperature sensor platinum resistor,NTC thermistor temperature sensor,TP1000 thermistor platinum resistor |
||
| Specification Name | Scope | Detection Condition |
|---|---|---|
| R25 (nominal resistance value) | 5K, 8K, 10K, 15K to 100K | Constant temperature 25ºC±0.05ºC |
| R25 Permissible variance(%) | ±1, ±2, ±3, ±5, ±10 | Constant temperature 25ºC±0.05ºC |
| B25/50 or B25/85 (material coefficient) | 2500~5000K | Constant temperature 25ºC±0.05ºC Constant temperature 85ºC±0.05ºC |
| B25/50 Value permissible variance(%) | ±1, ±2 | Constant temperature 25ºC±0.05ºC Constant temperature 50ºC±0.05ºC |
| ∫ (dissipation coefficient) | ≥0.8mw/ºC | Static in the air |
| T (thermal time constant) | ≤25S | Static in the air |
| Ta (Working temperature) | -40ºC~+250ºC | |
| Pn (rated power) | 50mw | Within working temperature |

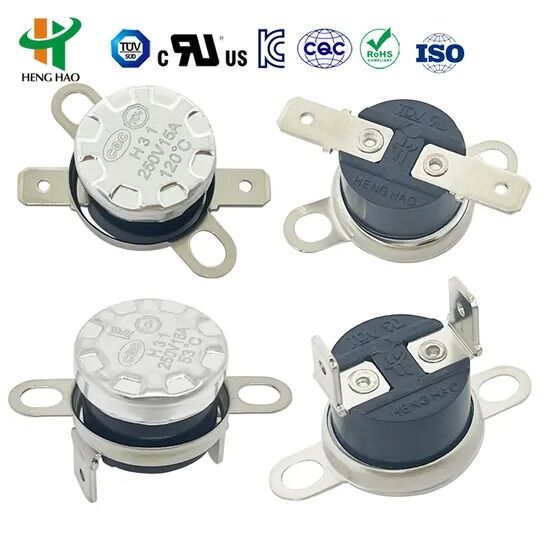

Manual reset type: Temperature sensing components consist of bimetallic strip. When the temperature reached the action temperature range, it will jump quickly and the movable disc disconnects. When the temperature declines to a fixed temperature point, the contact point cannot reset until reconnecting the circuit by pushing the reset button.
Note: This type of manual reset thermostat can reset when the temperature declines 20°C after snap action by pressing the reset button. And 4~6 N will be advisable; please don't use too much strength. To ensure the normal function, the distance between the reset button and the close cover should not be less than 20.4mm.
Auto reset type: Temperature sensing components consist of bimetallic strip. When the temperature reached the action temperature range, it will jump quickly and the movable disc disconnects. When the temperature declines to a fixed temperature point, the contact point can auto reset and start working.
Used as temperature control for household electric appliances and widely applied in:
| Open temp. | Reset temp. | Open temp. | Reset temp. | Open temp. | Reset temp. |
|---|---|---|---|---|---|
| -20ºC±5ºC | 5ºC±5ºC | 95ºC±5ºC | 80ºC±5ºC | 205ºC±5ºC | 175ºC±10ºC |
| -15ºC±5ºC | 5ºC±5ºC | 100ºC±5ºC | 80ºC±10ºC | 210ºC±5ºC | 180ºC±10ºC |
| -10ºC±5ºC | 5ºC±5ºC | 105ºC±5ºC | 85ºC±10ºC | 215ºC±5ºC | 185ºC±10ºC |
| 0ºC±5ºC | -10ºC±5ºC | 110ºC±5ºC | 90ºC±10ºC | 220ºC±5ºC | 190ºC±10ºC |
| 5ºC±5C | -5ºC±5ºC | 115ºC±5ºC | 95ºC±10ºC | 225ºC±5ºC | 195ºC±10ºC |
| 10ºC±5ºC | 0ºC±5ºC | 120ºC±5ºC | 100ºC±10ºC | 230ºC±5ºC | 200ºC±10ºC |
| 15ºC±5ºC | 5ºC±5ºC | 125ºC±5ºC | 105ºC±10ºC | 235ºC±5ºC | 205ºC±10ºC |
| 20ºC±5ºC | 5ºC±5ºC | 130ºC±5ºC | 110ºC±10ºC | 240ºC±5ºC | 210ºC±10ºC |
| 25ºC±5ºC | 10ºC±5ºC | 135ºC±5ºC | 115ºC±10ºC | 245ºC±5ºC | 215ºC±10ºC |
| 30ºC±5ºC | 15ºC±5ºC | 140ºC±5ºC | 120ºC±10ºC | 250ºC±5ºC | 220ºC±10ºC |
Or according to client's request
