| 型番: | NTC | 連絡先: | 無接触 |
|---|---|---|---|
| 出力信号: | サーミストール | 生産プロセス: | 注射 |
| 材料: | 抵抗性塩化リチウム | IP 評価: | IP65 |
| ヘッドタイプ: | 金属またはプラスチックチューブ | Bの価値: | 3950K 3435K 3977K PT100 |
| 連絡先タイプ: | 通常は閉じているか、通常開いています | スイッチタイプ: | 自動リセットまたは手動リセット |
| 公称抵抗: | 5k、8k、10k、15k〜100k | 使用温度: | -40℃～+250℃ |
| 定格電力: | 50mW | 熱時定数: | ≤25s |
| 消滅係数: | ≥0.8mw/℃ | ||
| ハイライト: | PT100 temperature sensor probe,PT1000 platinum resistor sensor,10K NTC thermistor sensor |
||
| Specification Name | Scope | Detection Condition |
|---|---|---|
| R25 (nominal resistance value) | 5K, 8K, 10K, 15K to 100K | Constant temperature 25ºC±0.05ºC |
| R25 Permissible variance(%) | ±1, ±2, ±3, ±5, ±10 | Constant temperature 25ºC±0.05ºC |
| B25/50 or B25/85 (material coefficient) | 2500~5000K | Constant temperature 25ºC±0.05ºC Constant temperature 85ºC±0.05ºC |
| B25/50 Value permissible variance(%) | ±1, ±2 | Constant temperature 25ºC±0.05ºC Constant temperature 50ºC±0.05ºC |
| ∫ (dissipation coefficient) | ≥0.8mw/ºC | Static in the air |
| T (thermal time constant) | ≤25S | Static in the air |
| Ta (Working temperature) | -40ºC~+250ºC | |
| Pn (rated power) | 50mw | within working temperature |

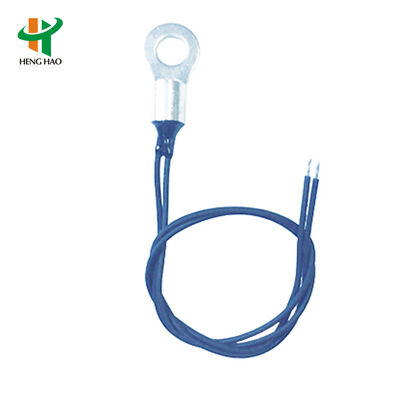

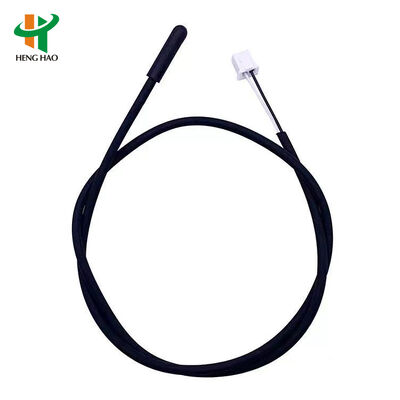

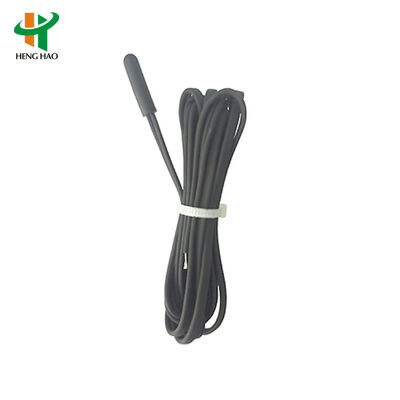

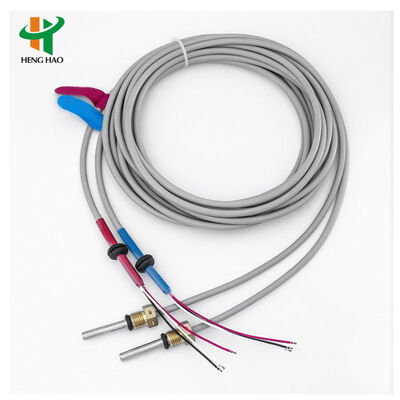

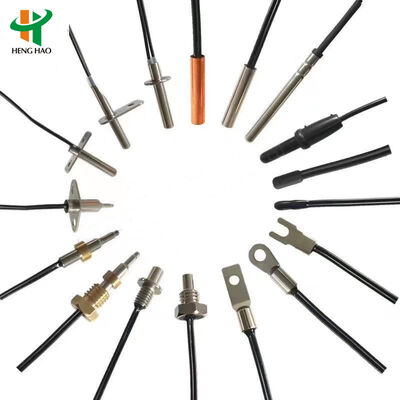

| Product name | PT100 temperature sensor (Thermocouples, hot resistance) |
|---|---|
| Graduation number | PT100, CU50, PT1000, K, E, J, T etc. |
| Temperature range | -50 to 500ºC |
| Chip imported from | Heraeus - Germany |
| Temperature probe | 304 stainless steel, plastic or other according to client's request |
| Accuracy Grade | A Grade (0.1), B Grade(0.3), 2B Grade (0.5), 1/3 B Grade(0.1) |
| Temperature probe size | 4*30mm, or according to client's request to design |
| Thermal time constant | 0.5S |
| Lead wire options |
Three core sliver tetrafluoride shielded wire (-50~200ºC) Silicone wire (-200~200ºC) Three core high temperature wire (-40~450ºC) Four fluorine wire (-50~150ºC) |
| Diameter | 3mm~16mm |
| Terminal options | Y type, Pin, XH2.54 or according to client's request |
| Level of protection | IP68 |
