| 型番: | NTC PT100 | 連絡先タイプ: | 無接触 |
|---|---|---|---|
| 出力信号: | サーミストール | 生産プロセス: | 注射 |
| 材料: | 抵抗性塩化リチウム | IP 評価: | IP65 |
| ヘッドタイプ: | 金属またはプラスチックチューブ | Bの価値: | 3950K 3435K 3977K PT100 |
| 公称抵抗: | 5k、8k、10k、15k〜100k | B25/50価値: | 2500〜5000K |
| 消滅係数: | ≥0.8mw/℃ | 熱時定数: | ≤25s |
| 使用温度: | -40℃～+250℃ | 定格電力: | 50mW |
| 温度範囲: | -50～500℃ | ||
| ハイライト: | Thread Head NTC temperature sensor,PT100 thermal sensor switch,R J thermocouple temperature probe |
||
| Specification Name | Scope | Detection Condition |
|---|---|---|
| R25(nominal resistance value) | 5K,8K,10K,15K to 100K | Constant temperature 25ºC±0.05ºC |
| R25 Permissible variance(%) | ±1,±2, ±3, ±5, ±10 | Constant temperature 25ºC±0.05ºC |
| B25/50 or B25/85(material coefficient)(thermal-sensitivity index) | 2500~5000K | Constant temperature 25ºC±0.05ºC Constant temperature 85ºC±0.05ºC |
| B25/50 Value permissible variance(%) | ±1,±2 | Constant temperature 25ºC±0.05ºC Constant temperature 50ºC±0.05ºC |
| ∫(dissipation coefficient) | ≥0.8mw/ºC | Static in the air |
| T(thermal time constant) | ≤25S | Static in the air |
| Ta(Working temperature) | -40ºC~+250ºC | |
| Pn (rated power) | 50mw | within working temperature |

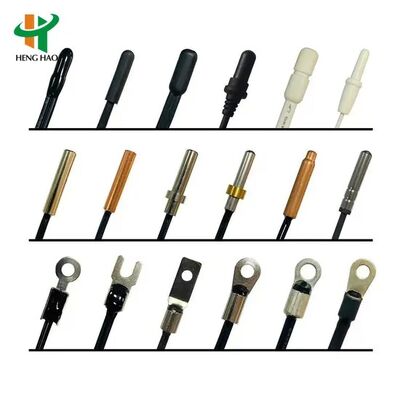

| Case and head | Fork head, O ring head,drops of water head, Metal case, Thread copper case, injection head, or according to client's drawing | |
| Lead wire | #24 30# 2651, UL4411 28#, double wired conductor and so on, or according to client's request. | |
| Terminal | Can be riveted according to the requirements of various terminals | |
| Product name | PT100 temperature sensor (Thermocouples, hot resistance) |
|---|---|
| Graduation number | PT100, CU50,PT1000,K,E,J,T etc. |
| Temperature range | -50 to 500ºC |
| Chip imported from | Heraeus - Germany |
| Temperature probe | 304 stainless steel, plastic or other according to client's request |
| Accuracy Grade | A Grade (0.1),B Grade(0.3),2B Grade (0.5),1/3 B Grade(0.1) |
| Temperature probe | 4*30mm, or according to client's request to design. |
| Thermal time constant | 0.5S |
| Lead wire |
Three core sliver tetrafluoride shielded wire (-50~200ºC) Silicone wire(-200~200ºC) Three core high temperature wire(-40~450ºC) Four fluorine wire (-50~150ºC) |
| Dia | 3mm~16mm |
| terminal | Y type, Pin,XH2.54 or according to client's request. |
| Level of protection | IP68 |
