商品の詳細:
|
| ライフサイクル: | 100000サイクル | 電圧と電流: | 250V 10A |
|---|---|---|---|
| 連絡先タイプ: | 通常は閉じているか、通常開いています | スイッチタイプ: | オート リセットか手動rese |
| 温度範囲: | 50-150℃ | 場合: | プラスチック |
| ハイライト: | 10 Amp resettable fuse thermostat,KW9700 bimetallic thermostat switch,H2O thermal protection switch |
||
| Electrical Rating | DC-12V max 12A; DC-24V max 10A; AC-125V max 8A; AC-250V max 16A |
|---|---|
| Open temperature | (30~150)±5°C; 5°C a step |
| Reset temperature | 2/3 of the action temperature with tolerance of ±15°C. Custom reset temperatures available. |
| Life times | 10000 cycles |
| Size | L15mm W7.1mm H3.8mm |
| Lead wire | #22 3266, end half tripping, length is 70mm (custom lengths available) |
| Certifications | UL File no: E487478 CQC certificate no: CQC16002142880 TUV certificate no: B160592241002 |
| Model | Case | Length(mm) | Width(mm) | Height(mm) | Voltage & Current | Lead wire |
|---|---|---|---|---|---|---|
| H20 | Plastic | 18.5 | 8 | 4 | DC-12V max 12A; DC-24V max 10A; AC-125V max 8A; AC-250V max 10A | #20 3135, end 5mm half tripping, length is 70mm (custom available) |
| H21 | Metal | 18.5 | 7.3 | 3.8 | ||
| H21 | Metal | 20 | 8 | 4 | AC250V 20A | #16 3135 |

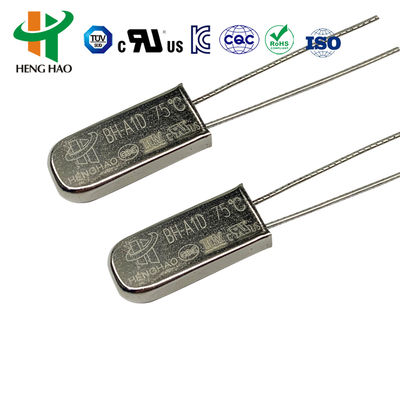

| BH-A1D | Metal | 15 | 6.6 | 3.2 | DC-12V max 12A; DC-24V max 10A; AC-125V max 8A; AC-250V | #20 3135, #22 3266, #22 3135, end 5mm half tripping, length is 70mm (custom available) |
| Code | Temperature | Code | Temperature |
|---|---|---|---|
| 30 | 30℃ | 100 | 100℃ |
| 35 | 35℃ | 105 | 105℃ |
| 40 | 40℃ | 110 | 110℃ |
| 45 | 45℃ | 115 | 115℃ |
| 50 | 50℃ | 120 | 120℃ |
| 55 | 55℃ | 125 | 125℃ |
| Contact Closure resistance | ≤50mΩ |
|---|---|
| Insulation resistance | ≥100mΩ |
| Electric strength | AC1500V/1min free from phenomena of break down and flashover |
